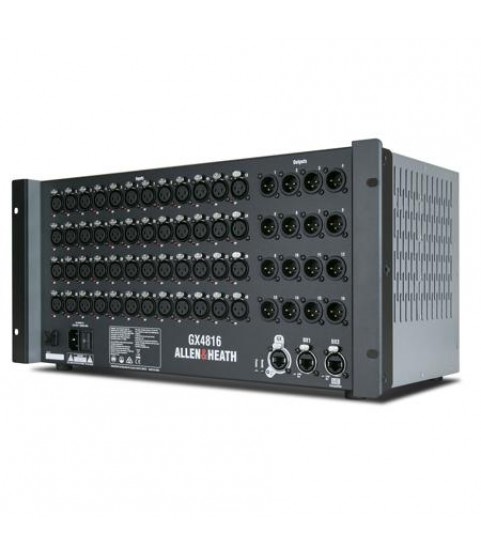

Allen & Heath GX4816 48×16 Portable GX Expander with DX Sockets
GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive mixing systems, and for AHM audio matrix processors.
48 Mic Preamps
+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.
16 Line Outs
Balanced, relay protected line outputs on XLR.
DX Ports
A pair of DX ports enable connection of additional DX expanders or the ME Personal Monitoring System (not on dLive or AHM)
Plug-and-Play
No configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically b
Massively Expand Your System I/O!
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion.
Maximum Flexibility
Put It Where You Need It.The GX4816 can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 5U 19″ space.
Key Features
For dLive and SQ Series Mixing Systems
48 x dLive Mic Preamps via XLR Inputs
Individually Selectable Phantom Power
96 kHz Audio
16 x Balanced XLR Line Outputs
Primary GX etherCON Port + 2 x DX Ports
Two Expanders per DX Port
Works with ME Personal Mixing System
Preamp Control via dLive or SQ Mixer
Stagebox Form Factor with Rack Ears
